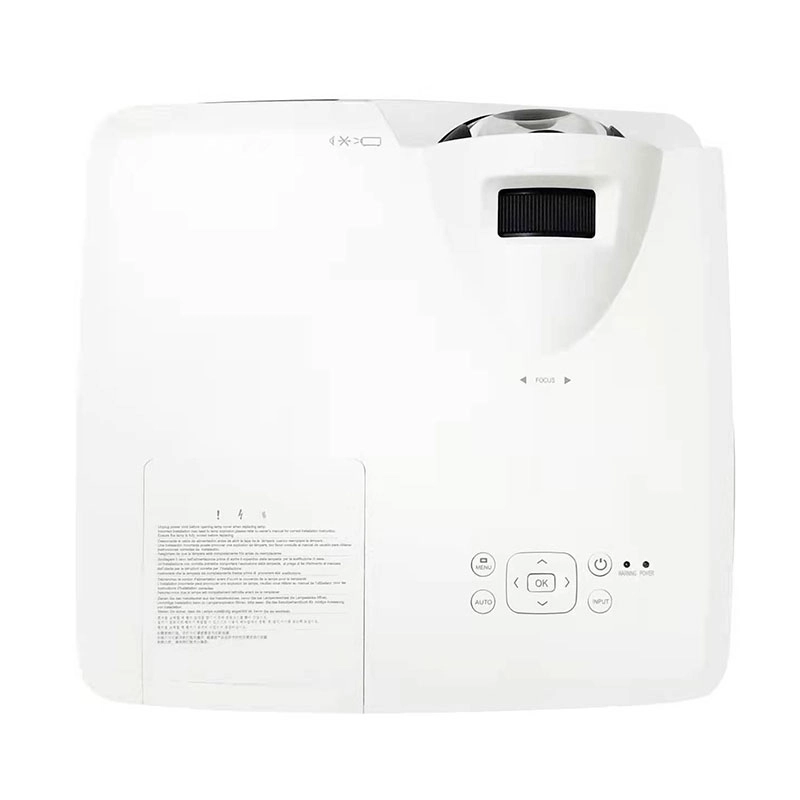

Model: GK-301XT

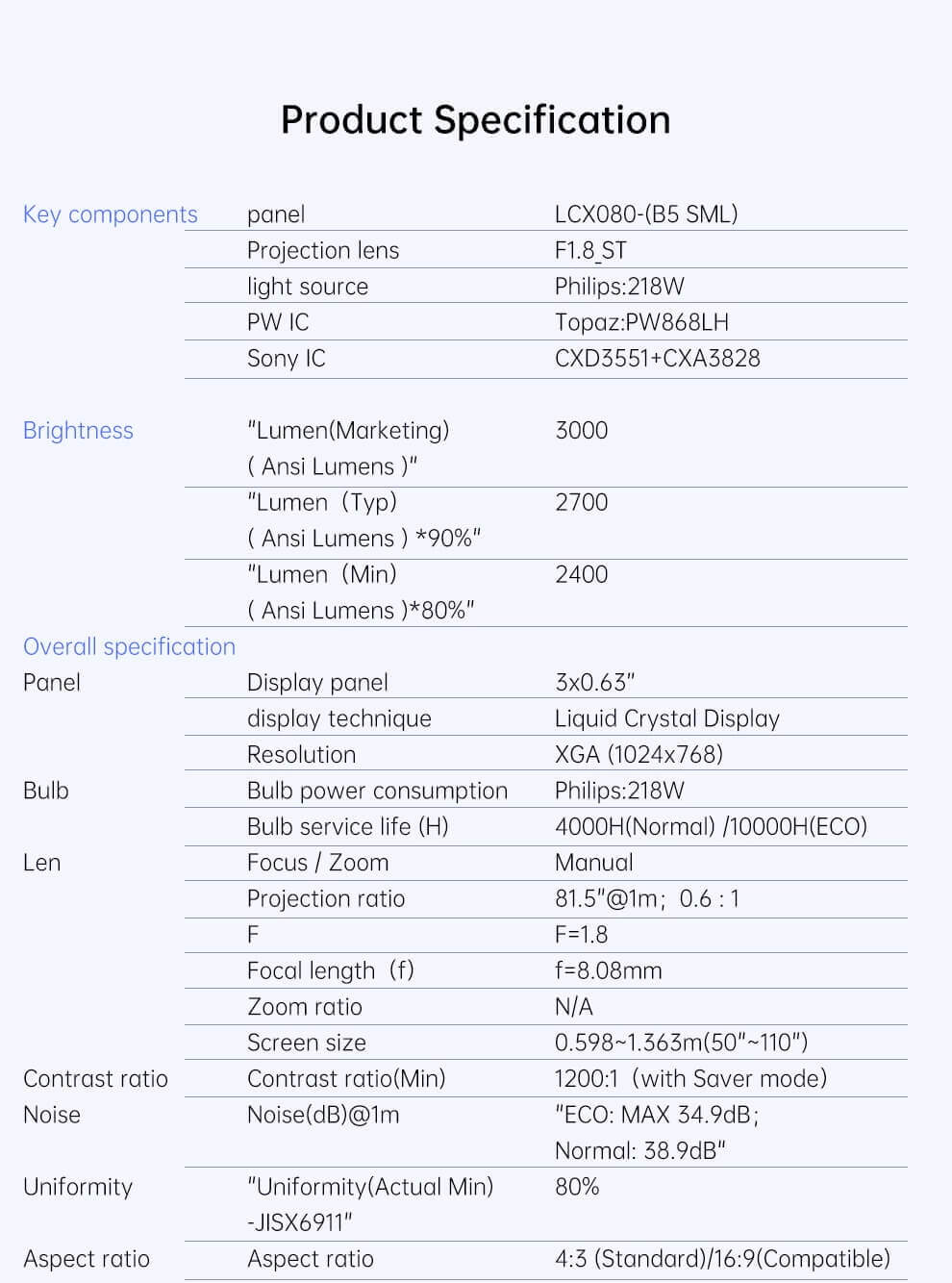

Spec:

1. Projection technology: 3lcd technology is adopted

2. UHP lamp with service life of 4000 / 10000;

3. Resolution: 1024 * 768; Projection size: 0.455-0.943m (50-100 inches); Brightness ≥ 3300lm; Contrast: 10000:1, projection ratio: tr0 46，80"@0.75m

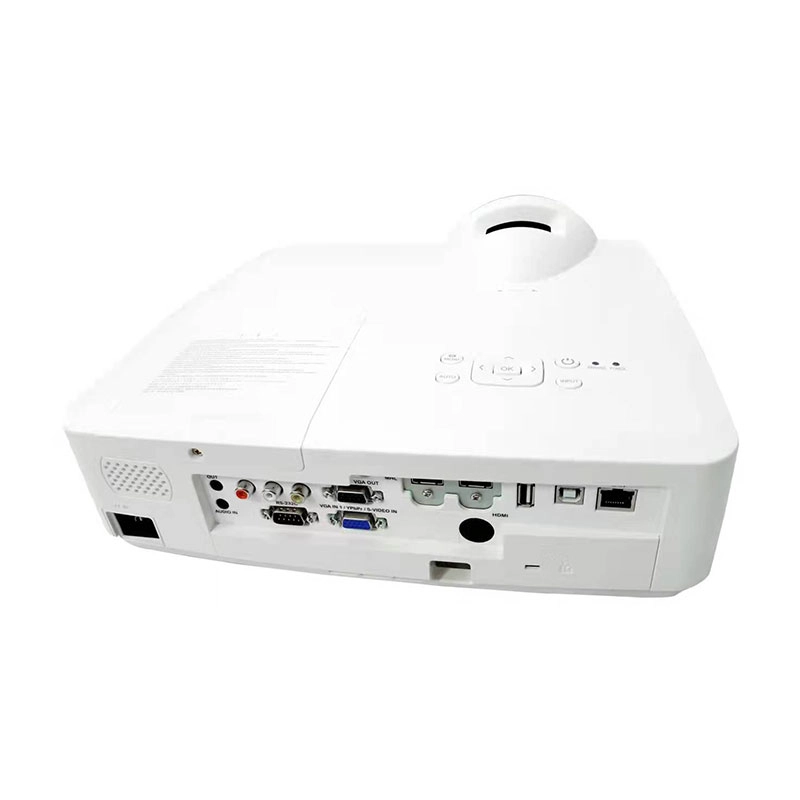

4. Interface requirements:

(1) Input interface: VGA * 2, audio in (mini jack, 3.5mm) * 1, YCbCr / comopnent * 1 (shared with VGA in 1), video * 1, audio in (L / R) -- RCA * 2, S-Video * 1 (shared with VGA in 1), HDMI * 2 (hdmi2 (MHL)), usb-a * 1, usb-b * 1 (display), RJ45 * 1 (display),

(2) Output interface: VGA * 1 (shared with VGA in 2), audio out (mini jack, 3.5mm) * 1,

(3) Control interface: rs232x1, RJ45 * 1 (network control), usb-b * 1 (upgrade)

5. Working environment: 0 ℃ ~ 40 ℃ (≥ 35 ℃ enter the economic mode); Working humidity: 20% ~ 85%.

6. Working power supply: wide voltage AC 110-240 V, 50-60 Hz

7. Speaker: 10W

8. Power consumption: ≤ 270 w (maximum), standby ≤ 0.5W

9. Weight 4kg

10. Noise: 32dB (economic mode) / 38dB (normal mode)

Trapezoidal Correction Function

Vertical correction, + 15 °, easy to adjust and ensure users to achieve

good imaging effect on irregular projection plane

Compatible With Multiple Resolutions

Standard resolution XGA (1024 * 768),

compatible with VGA/ SVGA/XGA/SXGA/SXGA +/WXGA/ UXGA

Meet the projection requirements of different occasions

3LCD Display Technology

Enjoy the fine quality of the original color and show the vivid vision

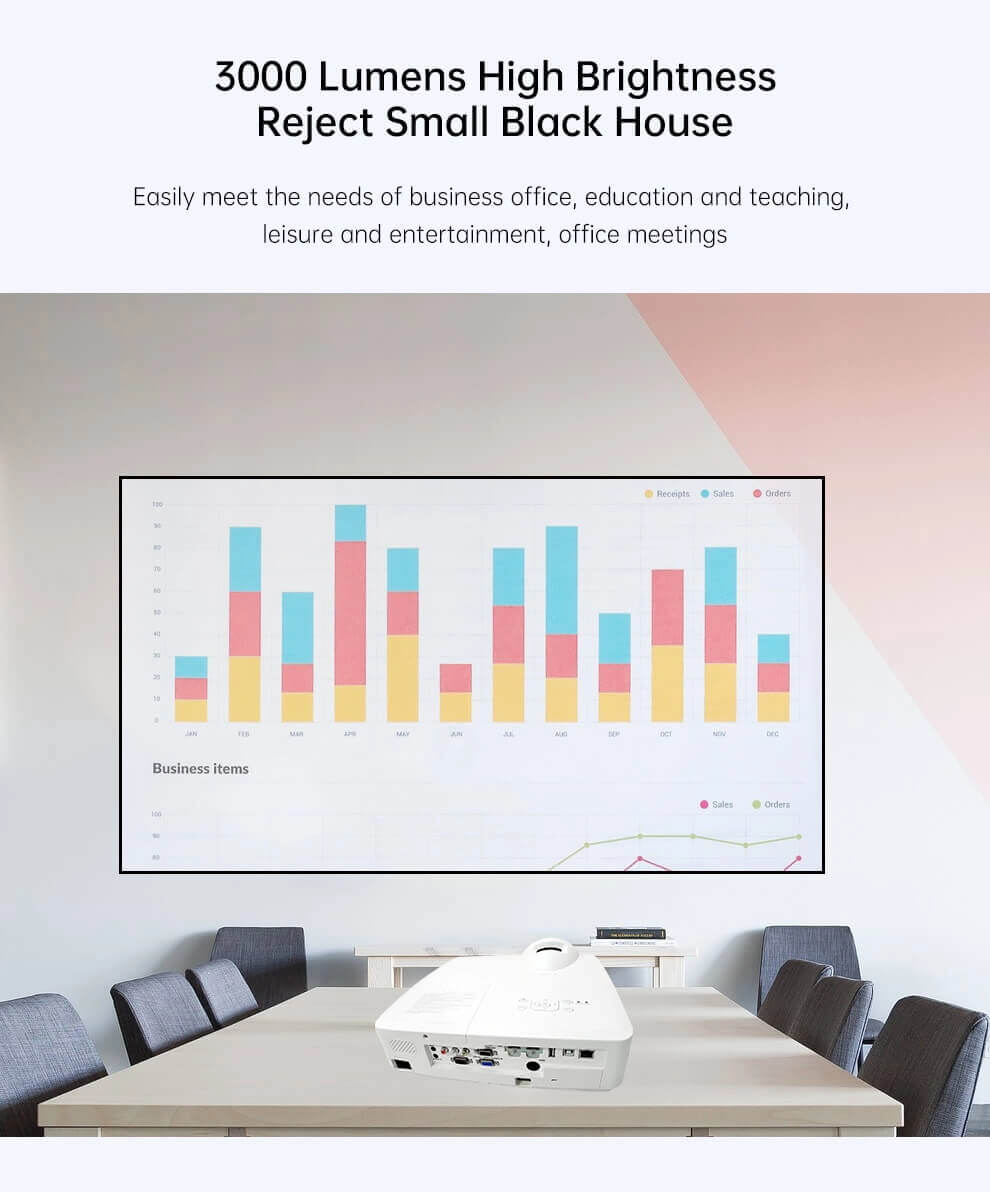

3000 Lumens High Brightness

Reject Small Black House

Easily meet the needs of business office, education and teaching,

leisure and entertainment, office meetings

1200:1 High Contrast

The projector 120o:1 contrast has natural and delicate image quality,

and details are clear

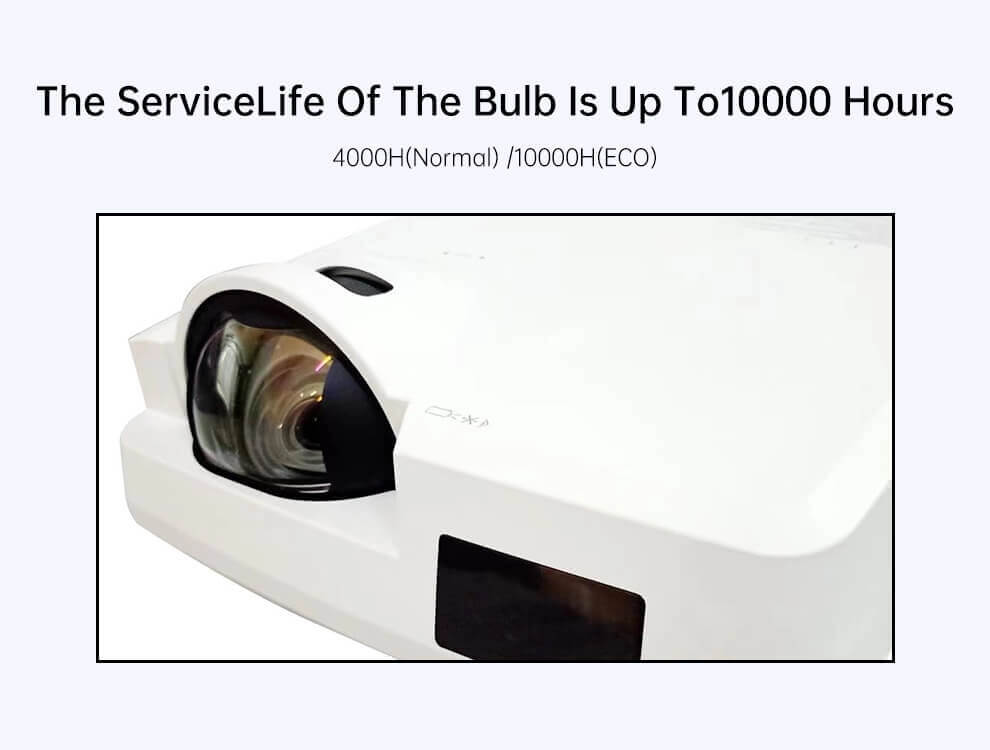

The ServiceLife Of The Bulb Is Up To10o00 Hours

4000H(Normal) /10000H(ECO)
